Bajak flip reversibel

Bajak flip reversibel dikembangkan dan diproduksi oleh Shuoxin®. Ini secara tepat mengontrol pengangkatan dan membalik alat bajak melalui sistem distribusi ganda, memungkinkan operasi bergantian dua arah. Kami juga menawarkan berbagai layanan penyesuaian, yang sepenuhnya dapat memenuhi kebutuhan petani dan memenangkan lebih banyak bantuan pelanggan.

mengirimkan permintaan

Deskripsi Produk

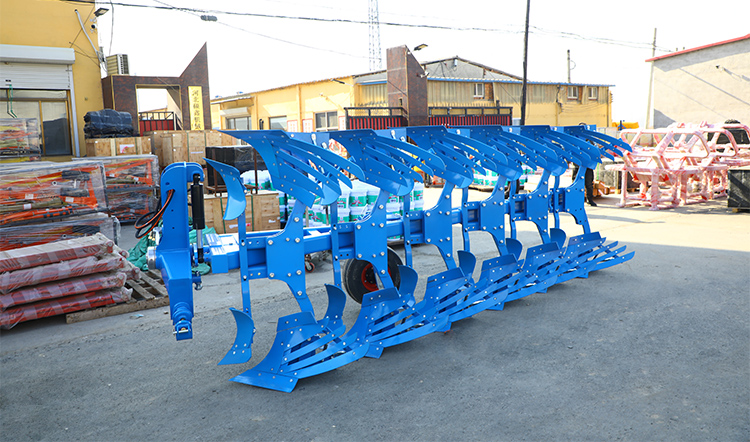

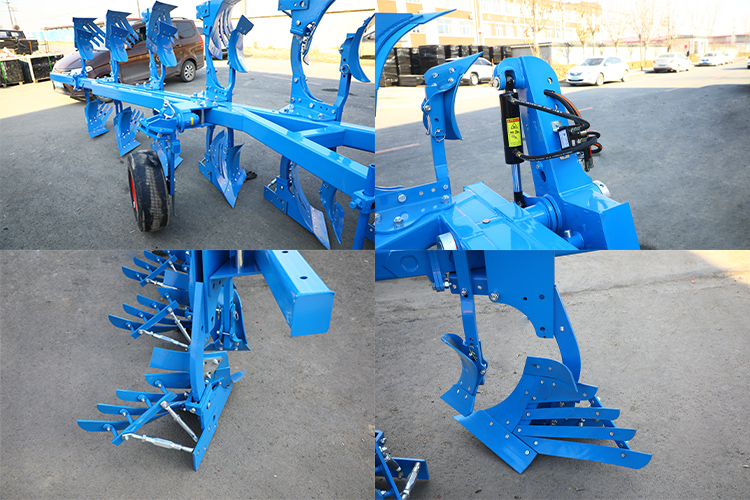

The reversible flip plough is composed of six core modules: the suspension frame, the reversing cylinder, the check valve mechanism, the ground wheel mechanism, the plow frame, and the plow body. The plow frame is driven to vertically flip forward and backward by the extension and retraction of the piston rod of the cylinder. The ground wheel mechanism adopts screw adjustment technology to integrate the control of plowing depth and transportation functions.

Performance advantage

Efficient work ability

The bidirectional reversing function can increase the farming speed, enhance fuel efficiency, and the working width can reach 120-250 centimeters, which is 40% faster than that of traditional plows.

Environmental adaptability

The reversible flip plough is hung behind the tractor and starts working as soon as the tractor is started. It is operationally flexible and stable, and suitable for many terrains.

Economic indicators

The body and components are made of durable materials, which reduces maintenance costs by 60%, lowers the failure rate, extends the mechanical service life, and also improves the fertilizer utilization rate, thereby reducing the total input cost.

Application scenarios and selection suggestions

Power matching

Devices of different specifications should be matched with corresponding tractors. For example, 1LF-340 is suitable for tractors with around 100 horsepower, while 1LF-550 is suitable for tractors with over 200 horsepower.

Terrain Adaptation

In plain areas, it is recommended to choose models with a standard width of 140 centimeters. For areas with uneven terrain, it is suggested to use equipment with adjustable width design.

Shuoxin® not only produces reversible flip plough but also various agricultural machinery products. It also offers customization services. Some trademarks can be printed on the products through methods such as embossing, printing, embossing, coating or stickers. We provide different warranty periods for different products. For detailed information, please contact us.
